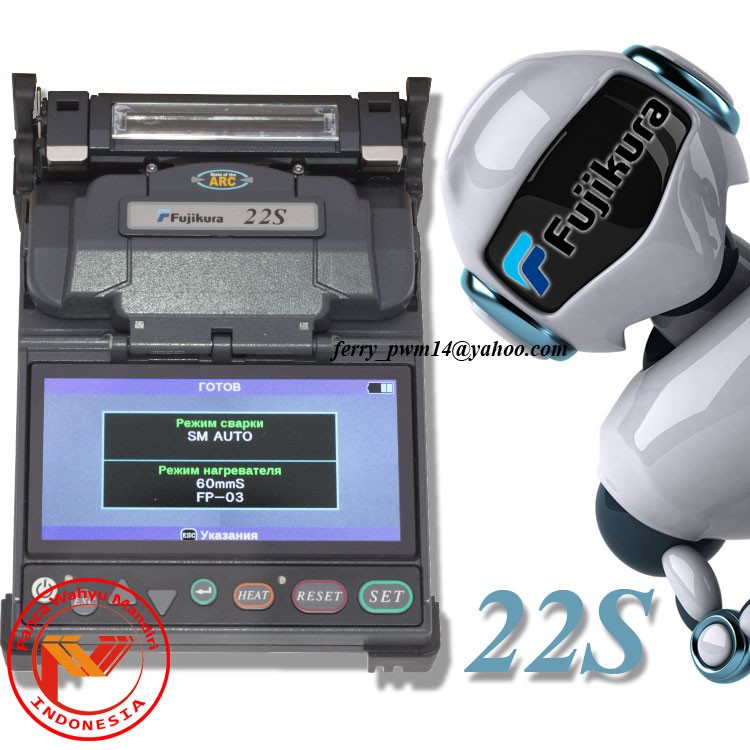

The 22s is designed for high-end FTTH splicer applications in FTTX, Data Center / LAN and Access Networks.

22s offers an active V-Groove alignment single fibre splicer for reliable and improved splicing performance for a range of different fibres; SMF, MMF, DSF, NZDSF.

Applicable from 125m cladding diameter/up to 3mm sheath diameter fibres with sheath clamp.

22s provides advanced capabilities; including splice result storage of 200 splices, 5-16mm short cleave length splicing .

Quick splicing time is produced in 9 seconds (single mode fibre) and an automated tube-heating time of 30 seconds (single mode 60mm).

Applications and fibresFTTH, FTTX Singe-Mode Fibre, Multimode Fibre, Dispersion-Shifted Fibre (DSF), Non-zero dispersion-shifted fibre (NZDSF).

Feature:

                The World's Smallest & Lightest Active V-groove Splicer

                Active V-groove fibre alignment

                11 second splicing in SM-AUTO mode

                30sec Automated Tube-heating with Single 60mm sleeve

                200 splice cycles / tube heating cycles per full battery charge

                Dimensions measure 120 x 189 x 71mm.

                Extremely lightweight at 1.1kg including battery

                Robust and lightweight design plus shock, dust and rain resistant

                4.7 inch color LCD for indoor and outdoor use

                Multi-functional carry case and work table accessory

                USB communication for PC connection.

 GARANSI RESMI 1 TAHUN..!!! DAPATKAN HARGA SPECIAL UNTUK PEMBELIAN 2 Unit

Semua Barang kami BERGARANSI RESMI dan Harga pun Relatif MURAH.

Note:

- Bebas biaya antar untuk wilayah Tangerang, Jakarta, dan Depok

- Menerima Pengiriman Luar Kota maupun Luar jawa

- Barang yang kami jual NEW 100% dan bergaransi resmi selama 1th.

- Dapatkan harga miring untuk pembelian lebih dari 2 Unit.

Kami pun menerima REPAIR semua macam merk SPLICER dan alat TELKOM lainnya.
